Foil Drive Fusion and Slingshot One Lock V2 Integrated Mast Bundle
Foil Drive Fusion and Slingshot One Lock V2 Integrated Mast Bundle - Image 2

Foil Drive Fusion and Slingshot One Lock V2 Integrated Mast Bundle

$0.00

The Slingshot One-Lock Aluminum Mast is one of the lightest aluminum mast on the market. Constructed with 6061 grade aluminum, the design optimizes aluminum placement for maximum weight savings and stiffness.

The mast’s chord sits at 118mm, achieving a perfect balance between efficiency, stiffness and weight.

This combination delivers direct and precise feedback. At the mast’s foot, our optimized One-Lock collar enhances efficiency and minimizes drag by ensuring smooth water flow from the front wing to the stabilizer, all while holding true to our durability standards.

SKU: 26KBC-147300 Categories: , , , Brand: ,

Description

The Foil Drive Fusion x Slingshot One-Lock V2 Integrated Mast bundle, pairs the powerful, long-runtime Fusion system with these Slingshot masts for the ultimate hybrid setup.

Note: Motor Position is fixed and cannot be adjusted.

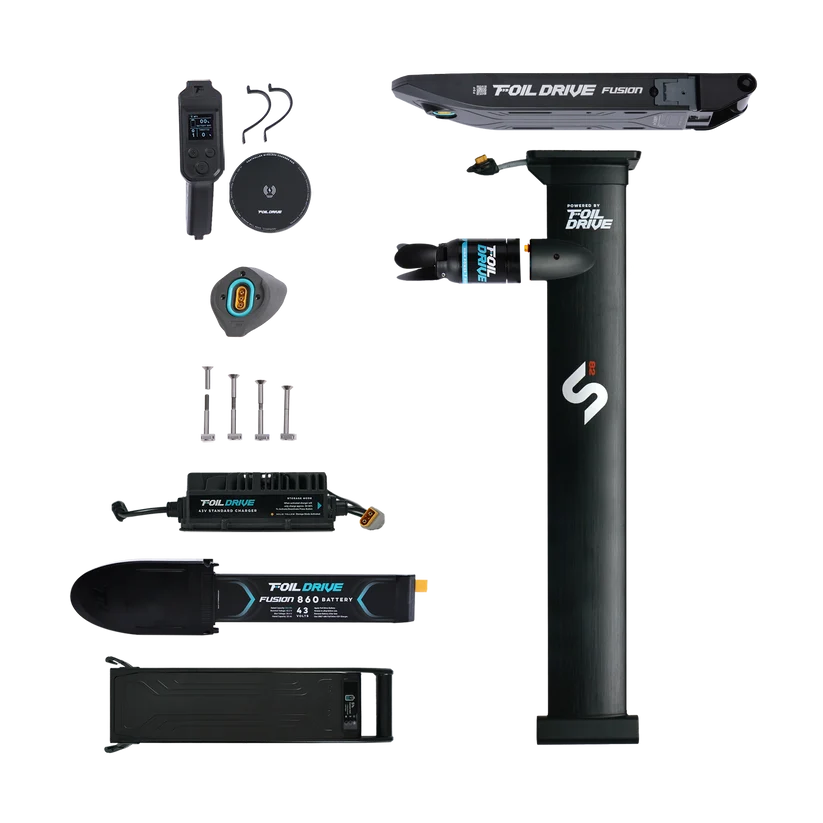

This bundle includes:

  • Foil Drive Fusion
  • Fusion Battery
  • Foil Drive x Slingshot One-Lock V2 Integrated Mast
  • Integrated Mast High Power Motor
  • Foil Drive Barnacle Cable Extender (only included when assist mast height is selected)

Motor Mount Position

Assist – 17 cm: A unique motor position designed for beginner, intermediate, and advanced assisted foilers alike. The Assist motor position is ideal for hybrid foiling, where riders use short bursts of power to get up on foil before harnessing natural energy from swell or wind to sustain flight once the motor exits the water.

The motor height lets you “surface motor” out to the lineup or travel upwind while keeping the motor tucked close to the board, where it stays out of the way once you’re riding. Designed to extend every session, it helps riders get on foil faster, ride longer, and unlock more conditions with confidence and control.

eFoil: Designed for leisure foiling, flatwater cruising, and experimenting with your foils in new ways. Cruise at sunset or push the limits of your setup in a controlled environment. With the motor positioned deeper in the water for consistent propulsion, the eFoil configuration is a versatile way to extend what’s possible with your Slingshot foils.

Tech Specs

  • Mast length: 18cm
  • System Nominal Voltage: 43.2V
  • Battery Capacity Range: 864Wh
  • Max Thrust: 34kg / 74.9lbs
  • Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
  • Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
  • Dimensions with Battery: L658 x W125 x H54mm
  • Peak Horsepower: 2155W/2.89hp
  • Sustained Horsepower: 1750W/2.35hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance

What’s Included

Foil Drive Fusion

Fusion 860 Battery

Slingshot One-Lock V2 Integrated Mast

Integrated Mast High Power Motor

US AC Lead

V3 Controller with Bump Guard Installed

Universal Motor Pod

43V Standard Charger 12amp with selected AC Cable

1x Mast Cable Guide 23cm

2x Mast Foam Tracks Guides

1x Tool Caddy (Inside Fusion)

4x Titanium T40 M7 Split Bolts Silver

1x Medium Sticker Pack

Controller Accessories Case

– Charge Pad and Cable

– Bump Guard Variation

– Wrist Leash

– 1.5mm Allen Key for Bump Guard Removal Tools and Hardware

– 1x T40 Driver

– 1x T30 Driver

– 1x 2.5mm Black Titanium Driver

– 1x Pick Tool

– 2x 15g Battery Grease

– 2x Nose Cone Rocker Pads

– 3x M4 10mm Titanium Motor Plug Bolts

– 1x Anode Replacement Kit

– 1x Replacement Electronics Box O-Ring (Blue)

– 1x Replacement Motor Cable O-Ring (Blue)

– 1x Replacement Motor Cable O-Ring (Red)

– 1x Microfibre Towel
