Foil Drive Assist Slim and Slingshot One Lock V2 Integrated Mast Bundle

Description

The Foil Drive Assist Slim x Slingshot One-Lock V2 Integrated Mast Bundles the smaller, lighter, performance-oriented model in the Foil Drive range, delivering efficient hybrid electric assist for advanced riders. Despite its compact size, it provides ample thrust to help you get onto the foil faster and ride more efficiently. It’s perfect for high-performance surf, wing, and downwind foilers who prioritize low weight and maneuverability over extended battery runtime.

Note: Motor Position is fixed and cannot be adjusted.

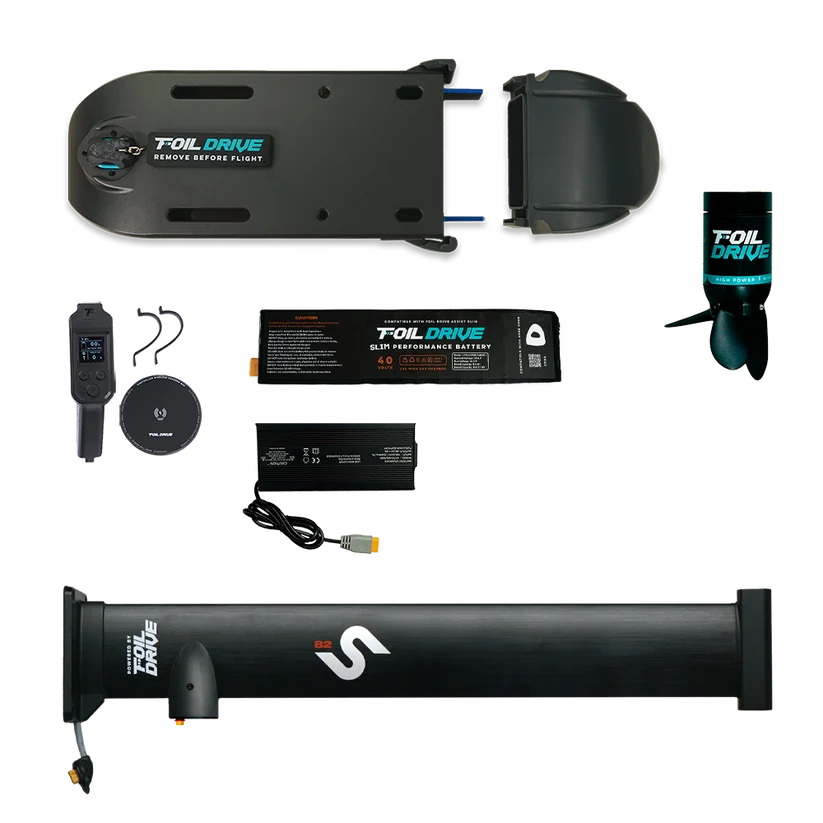

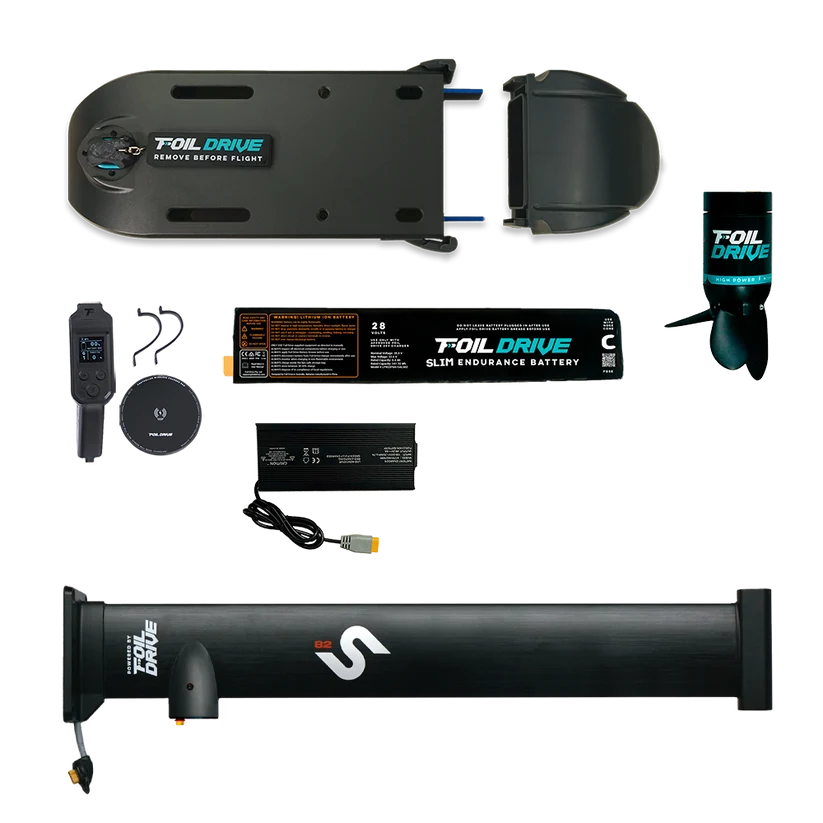

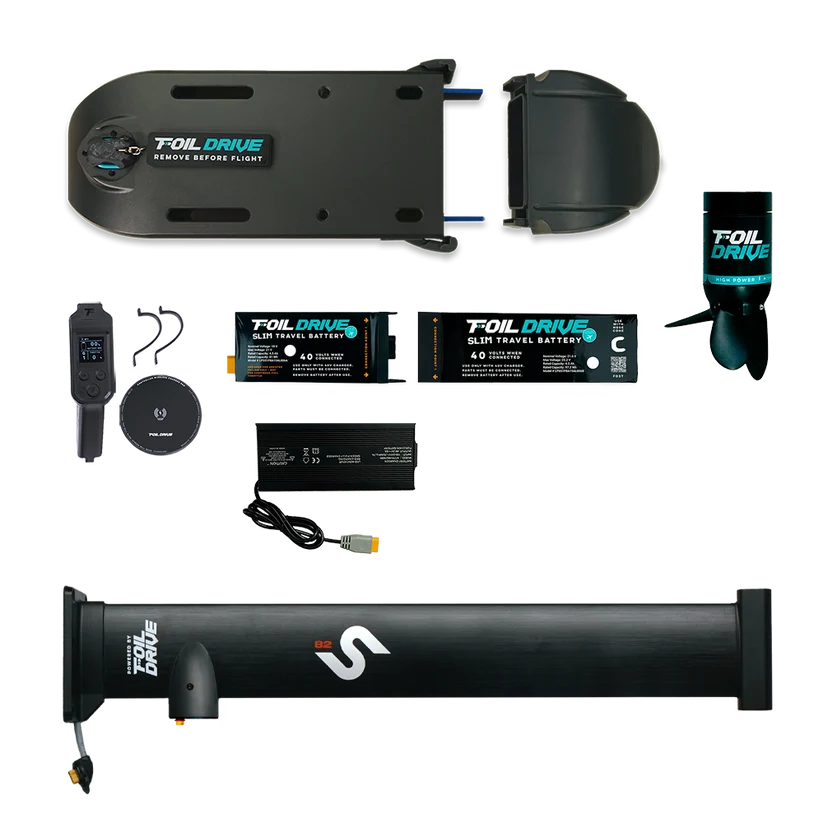

Bundle Includes:

• Foil Drive Assist Slim
• Chosen Slim battery
• Foil Drive x Slingshot One-Lock V2 Integrated Mast
• Integrated Mast High Power Motor

Integrated Mast Motor Positions

17cm Assist: The 17cm position a unique position for Slingshot, designed to be perfect for both beginner and intermediate assisted foilers. Motor Position is measured from the center of the pod to the bottom of the mast foot, the Assist position useful for short bursts of power to get on foil, the totally disappears to utilize natural elements like wind or waves to sustain your foiling. The motor height allows you to “surface motor” to the lineup, or upwind, without risk of your board touching down, while remaining close enough to the board to not interfere with your ride once on foil. The Assist Mast mast delivers clean lift, reduced drag, and efficient, responsive performance with controlled electric assist. Designed to extend every session, it helps riders get on foil faster, ride longer, and unlock more conditions with confidence and control.

Efoil: Efoil Motor is designed for leisure foiling, flatwater cruising and experimenting with your foils in new ways. Cruise at sunset, or push the limits of your foils in a controlled environment.

Tech Specs

• System Nominal Voltage: 40V
• Battery Capacity Range: 166-241Wh
• Max Thrust: 26.5kg / 58.4lbs
• Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
• Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
• Dimensions with Battery: L510x W125 x H35mm
• Peak Horsepower: 1854W/2.5hp
• Sustained Horsepower: 1455W/1.9hp
• App Compatibility: Foil Drive App, Android and IOS
• Water Rating: IP68 Water and Dust Resistance

What’s Included

• Foil Drive Assist Slim
• Chosen battery
• Foil Drive x Slingshot One-Lock V2 Integrated Mast
• Integrated Mast High Power Motor

Motor Plug Protector with Keychain

Foil Drive Nose Cone C

Foil Drive Nose Cone D

Foil Drive V3 Controller

Foil Drive Controller Wrist Strap

Foil Drive Controller Wireless Charge Pad

Micro USB Cable

40v Standard Foil Drive Charger 4amp

1x Mast Cable Guide 23cm each

2x Mast Track Foam Inserts

2x Nose Cone Rocker Pad

2x Battery Grease

4x M8 Assist Slim Mast Plate Bolts 80mm

4x M6 Assist Slim Mast Plate Bolts 80mm

Foil Drive 2.5mm Driver

Pick Tool

Torx T40 Tee Handle Driver

Torx T30 Tee Handle Driver

Foil Drive Cleaning Cloth

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag

– 4x M8 Locking Tee Nuts

– 4x M6 Locking Tee Nuts

– 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag

– 4x Motor Pod Bolts (M3 x 12mm)

– 3x Puck Bolts (M3 x 12mm)

– 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag

– 2x O-Ring Seals

– Foil Drive Assist Slim

– 2x Latch Assembly

– Foil Drive Assist Slim

– 3x Motor Plug Bolts (M3 x 12mm)

– 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)

– 4x Latch Locking Bolts (M3 x 16mm)

– 2x Propeller Bolts (M3 x 30mm)

– 2x Latch Pivot Bolts (M3 x 45mm)
